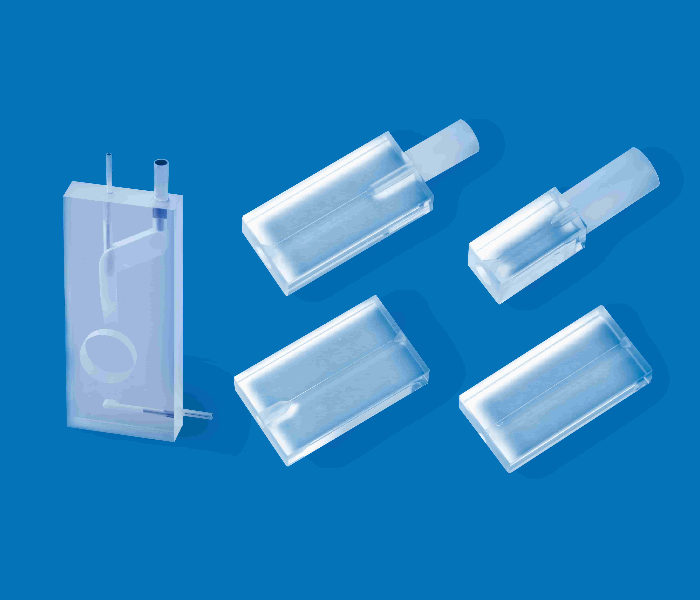

Flat Optics Single and Multi Flow Through Quartz Cuvettes

Flat Optics Flow Through Quartz Cuvettes are widely used in Hemocytometer, Flow Cytometry, Spectroscopy, Urine Analyzer and Cell Counter and other Life Science Instruments. Hitronics is the top one manufacture providing super stability, maximum precision and reliability cuvettes for the global customers for your individual applications.



Flat Optics Single And Multi Flow Through Quartz Cuvettes



  Features:

  Application:

  • Shape: Single, Assembly or Module
  • Roughness≤5 Å
  • Surface Irregularity of Diversion Hole<8um
  • Hemocytometer
  • Flow Cytometer
  • Urine Analyzer
  • Cell Counter
  • Spectroscopy

Key Parameters Capacity of production
Materials Fused Silica
Assembly Optical cement
The quality of cement surface Optical aperture:5-2
Non-optical aperture:40-20, customized
Roughness ≤5 Å
Inner hole Rectangle
Sizes of inner hole ≥0.1*0.05mm,
Tolerances:A、±0.006mm,B、±0.003mm
Surface quality Optical aperture:10-5
Non-optical aperture:no-controlling
Chipping of inner holes Optical aperture:
≤0.02(radial direction)*0.05(circular direction)
Non-optical aperture:
≤0.05(radial direction)*unlimited(circular direction)
Defects of inner hole Width≤0.02mm,Length is unlimited
Diversion hole Surface roughness: <8um
Shape Customized
