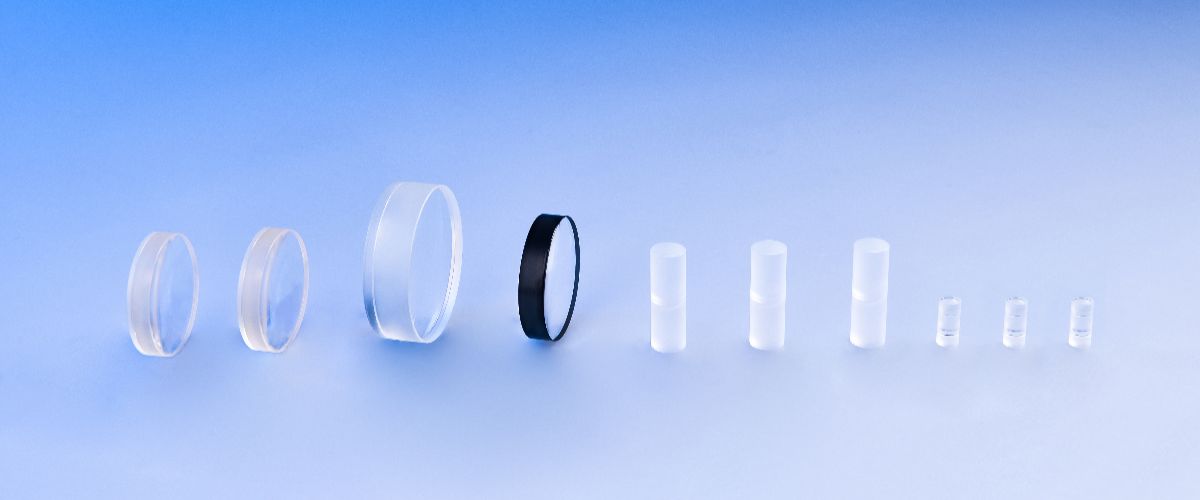

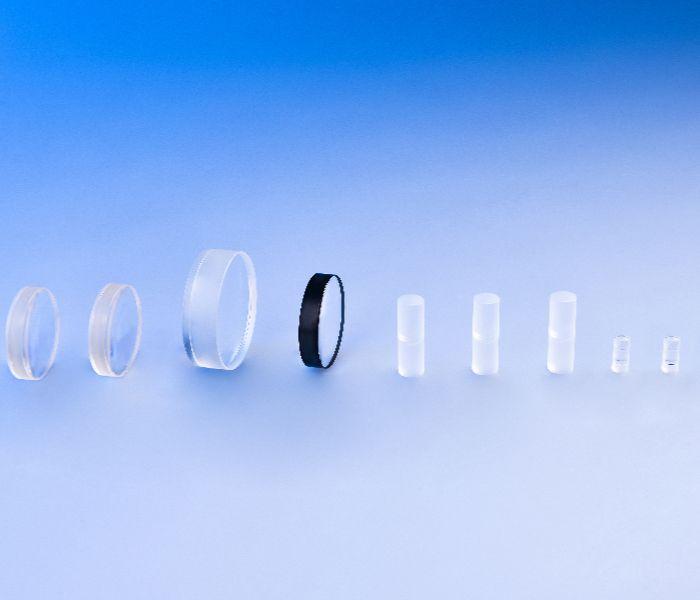

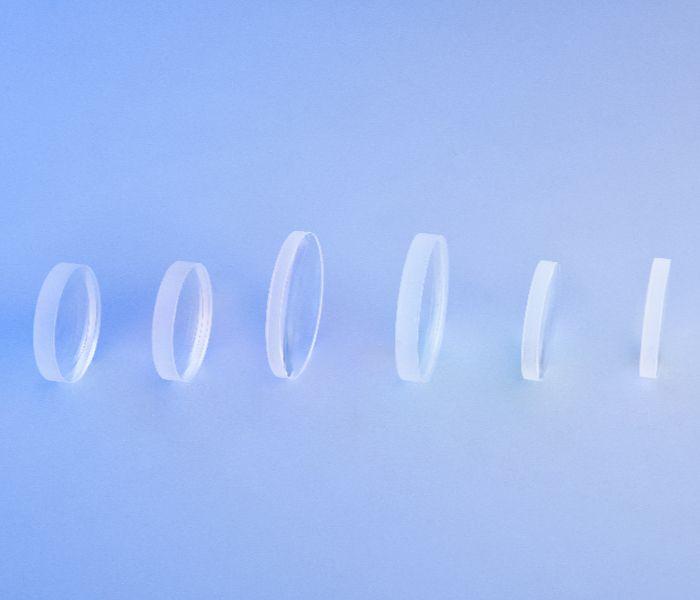

Spherical Lenses And Lens Assembly Used For Various Light Path
- Archromatic Lenses
- Plano Concave Lenses
- Plano Convex Lenses
- Meniscus Lenses
- Doublet Lenses
- Triplet Lenses
- Rod Lenses
Brand:
Hitronics
Brand:
Hitronics
Parameters |
Commercial Quality |
Precision Quality |
High Precision Quality |
Diameter (D) |
1mm ~ 300mm |
||
ROC |
1mm ~ ∞ |
||
D tolerance |
+/-0.1mm |
+/-0.03mm |
+/-0.01mm |
Center Thickness Tolerance (CT) |
+/-0.1mm |
+/-0.05mm |
+/-0.02mm |
Centration Tolerance |
<3' |
<1' |
<30'' |
Surface Quality (S/D) |
60/40 |
20/10 |
10/5 |
Irregularity |
λ/2 |
λ/4 |
λ/10 |
Coatings |
Coatings according to customers' requirements. |
