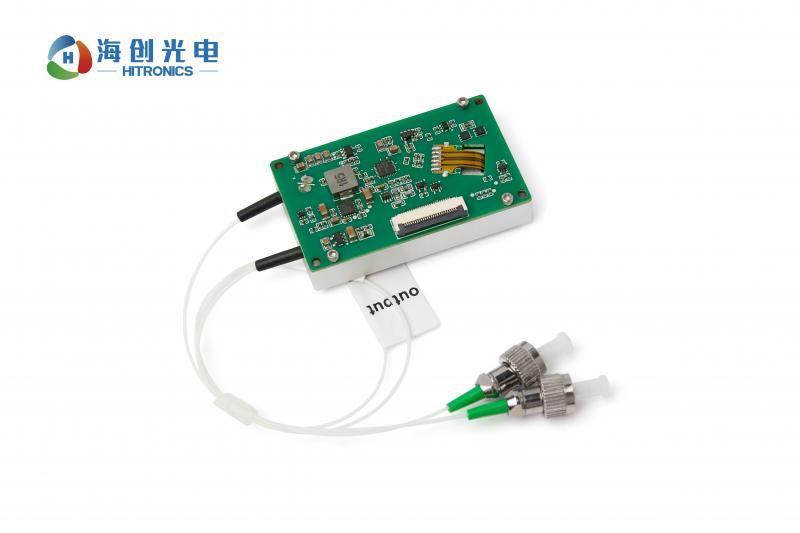

中文NANO 1.5um/1550nm Fiber Laser Module For Future LiDAR
- Eye-safe
- Auto-grade
- Ultra-compact Size (65X20X14mm)
Brand:
Hitronics
Brand:
Hitronics
| Parameters | Unit | Spcecifications | ||
| Min. | Type. | Max. | ||
| Average Power | W | - | 0.6 | 1 |
| Laser Central Wavelength | nm | 1533 | 1535 | 1536 |
| Pulse Width (FWHM) | ns | 2 | 10 | |
|
Pulse Repetition Frequency (PRF) |
KHz | 780 | 868 | 955 |
| ASE Noise Ratio | % | 10 | ||
|
Output Polarization |
NA | Random | ||
|
Trigger Mode |
NA | External Trigger | ||
|
Output Fiber Type |
G.657A (900L) | |||
| Output Fiber Length | m | 0.1 | - | 0.5 |
| Operating Temperature | ℃ | -40 | 105 | |
| Storage Temperature | ℃ |
-40 | 125 | |
| Output Beam Quality Factor | M2 | 1.1 | ||
| Power Consumption | W | - | 8 | 10 |
| Fiber Termination | FC/APC or bare fiber |
|||
Certified by Automotive Grade--ISO 16750/IEC 60068 and ISTA 3A Compact Size: ≥50*55*19mm³ Eye-safe Auto-grade: -40°~105° Temperature Mass Production: ≤ 1M pcs @ 2024 Low Consumption: < 10W Measuing Distance: 200~1000M
Compact Transmitter (D10X25) Hitronics patented PBC prisms beam shaping technology compress the size of the slow axis, effectively reducing the beam parameter product and improving the beam quality and coupling efficiency.
Ultra-compact Size Long-distance Rangefinder 15KM Eye-safe Low Cost
Certified by Automotive Grade--ISO 16750/IEC 60068 and ISTA 3A Compact Size: 80*49.5*20mm³ Eye-safe Auto-grade: -40°~85° Temperature Polarization Extinction Ratio: 20dB
Compact Size: ≥80*90*23mm³ Eye-safe -40°~85° Temperature Low Consumption: < 20W Measuing Distance: 200~1500M
Compact Size: ≥80*49.5*20mm³ High power：4KW Eye-safe -40°~85° Temperature Low Consumption: < 40W Low SNR: ＜5%@250kHz, 3ns
Compact Size: ≥50*70*19mm³ Eye-safe -40°~105° Temperature Low Consumption: < 13W Measuing Distance: 200~1500M
