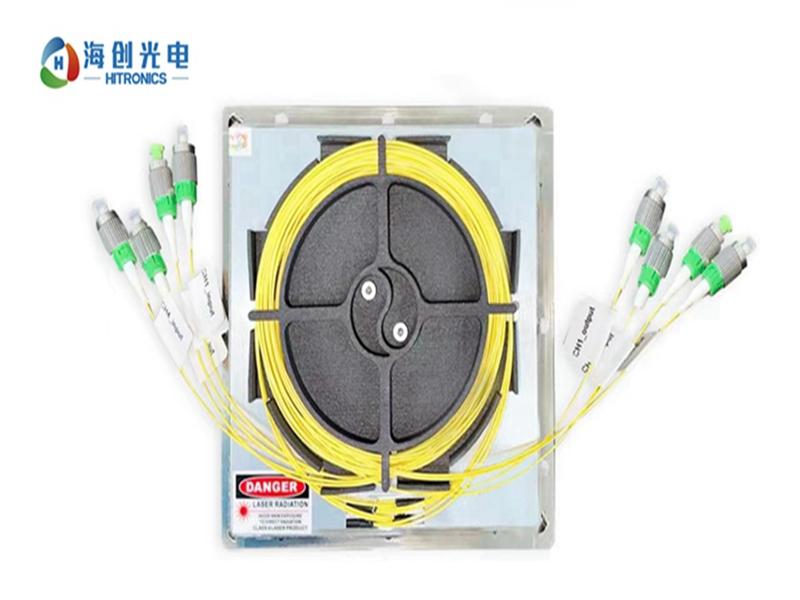

中文1550nm/1.5µm PM Fiber Amplifier for FMCW LiDAR
- Compact Size: 200*200*20mm³
- Eye-safe
- Polarization Extinction Ratio: 22dB
- FMCW LIDAR, coherent fiber-optic communication, free-space optical communication, and nonlinear optics
Brand:
Hitronics
Brand:
Hitronics
Hitronics’ Aqila™1550nm series fiber lasers are specifically designed for LiDAR and depth sensing applications. 1550nm is the idea wavelengths as it is safe for human eyes, high peak power and the excellent signal-to-noise ratio for longe distance and more accurate 3D sensing.
Leveraged from its extensive experience in optical telecom, laser optics, opto-electrical mechanical design, and volume manufacturing,Hitronics offers the most compact (business card size) and energy efficient 1550nm fiber lasers in mass production quantities catering to the needs of our clients in the LiDAR, autonomous vehicles, automated guided vehicles (AGVs), autonomous mobile robots (AMR), rangefinder, telemetry, mapping and 3D scanning sectors.
Features: |
Applications: |
|
|
| Parameters | Unit | Spcecifications | ||
| Min. | Type. | Max. | ||
| Wavelength | nm | 1540 | 1550 | 1565 |
| Input Power | mW | 5 | - | 100 |
| Output Power | mW | 100 | - | 5000 |
| Polarization Extinction Ratio | dB | 22 | ||
| Input power monitor range | dBm | -10 | - | 17 |
| Output power monitor range | dBm | 10 | 37 | |
| Noise Figure | dB | - | - | 6 |
| Power Consumption | W | 40 | ||
| Electro-optic conversion efficiency | % | >15% | ||
| Input/Output Fiber Type |
- | PM1550 Panda Fiber |
||
| Control Mode |
- | ACC/APC |
||
| Size | mm | 200x200x20 | ||
1Please inquire for custom configurations.
