Features
lUltra-compact size
lLow Insertion Loss
lHigh Isolation
lPolarization Maintaining
lRoHS Compliant
Applications
lHigh Power Amplifier
lLidar
lFree Space Communication
Brand:

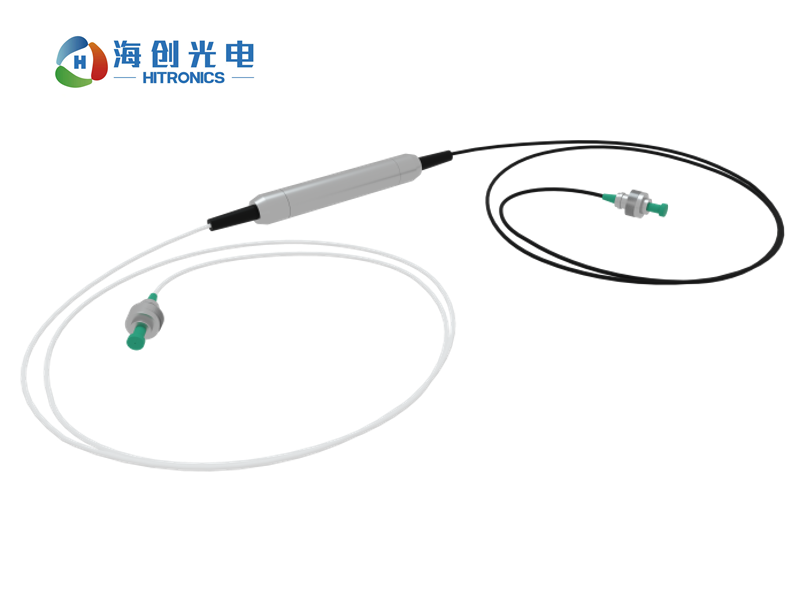

HitronicsHitronics supplies a wide variety of polarization-maintaining components, designed for different polarizationdependent applications, which are becoming increasingly important in today's LiDAR and free-space-optical communications.
By maintaining the polarization of the signal in the path, Hitronics' polarization-maintaining components minimize polarization mode dispersion and eliminate the effect of polarization-dependent loss thereby increasing the quality of the signal.
Features: |
Applications: |
|
|
| Parameters | Conditions | Unit | Min. | Type. | Max. |
| Operating wavelength | nm | 1540 | 1550 |
1565 | |
| Insertion loss |
λop, Top | dB | - | - | 0.6 |
| Isolation | λop, Top |
dB | 35 | - | - |
| Return loss | Input/Output | dB | 55/55 | - | - |
| Polarization Extinction Ratio | dB | 20 | - | - | |
| Axis Alignment Type | - | Slow axis working | |||
| Average Optical Power Handling | Input-Output | W | 5 | - | - |
| Average Optical Power Handling |
Ouput-Intput |
W | 2.5 | ||
| Tensile Load | Each port | N | 5 | - | - |
| Fiber Type |
Each port | - | Corning PM 15-U25D(PM Panda Fiber) | ||
| Fiber Length | Each port | m | 0.7 | - | - |
| Operating Temperature | Case | ℃ | -40 | - | 105 |
| Storage Temperature | ℃ | -40 | 115 | ||
| Size | mm | 5.5*35 | |||
